Self-start/self-switching/self-parallel/three-remote system

Overview of other series and remote control series

Emergency self-start, self-switching, self-parallel, three-remote system series generator sets

Manual control screen

1. With start/stop function

2. Output AC voltage and current selection switch

3. Frequency meter, voltmeter, ammeter, water temperature meter, oil pressure mercury, battery voltmeter

Optional function

1. Alarm function: alarms for overspeed, high water temperature, low oil pressure, etc.

2. Protection function: low oil pressure, high water temperature, emergency shutdown and alarm when overspeed

Power failure self-starting control panel

1. With all functions and configurations of the manual control screen

2. Automatic/stop/manual function selection

3. Delay after starting (optional 3~5 seconds)

4. Delay after shutdown (0~270 seconds optional)

5. Remote monitoring interface

6, suitable electric charger

7. Alarm function: low oil pressure, high water temperature, overspeed, output voltage failure, start failure, emergency stop and other preset protections

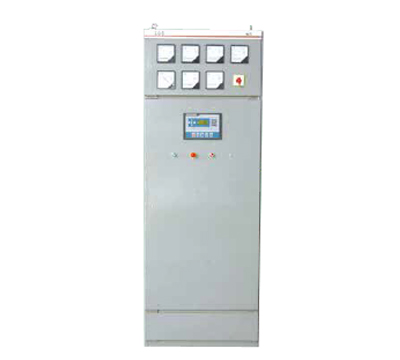

Fully automatic remote monitoring control screen

1. The LCD screen displays the operating status and various parameters of the unit, and records the fault parameters of the unit

2. RS232/485 interface, remote control, remote measurement, remote signaling function

3. The unit protection will automatically stop and give an alarm when starting failure, overspeed, low speed, high water temperature, low oil pressure, sensor and other fault conditions

Dual power automatic switching screen (ATS)

1. Four-pole mechanical and electrical interlocking switch

2. Mains, power generation, output status indicator

3. Automatic and manual selection switch

4. The screen is sturdy and easy to operate

5. The automatic switching time is adjustable (no more than 7 seconds)
