Dry energy diesel generator set

Availability:

1. Overview of dry energy diesel generator set:

Shanghai Qianneng Internal Combustion Engine Co., Ltd. is one of the important diesel engine companies in China, mainly engaged in the R&D, design, production and sales of diesel engines and their accessories and diesel generator sets.

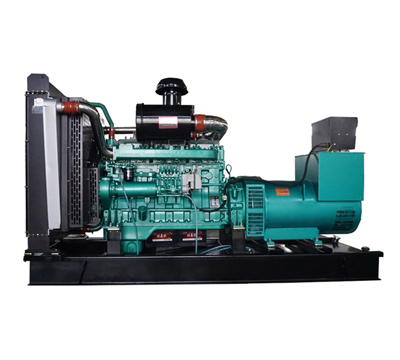

Dry energy diesel generator set 2

At present, the company's power station diesel engines \"D114 series, 135/138 series and G128 series\" three product platforms, the power range is from 171-1120KW, the speed is 1500-1800 rpm, providing users with options.

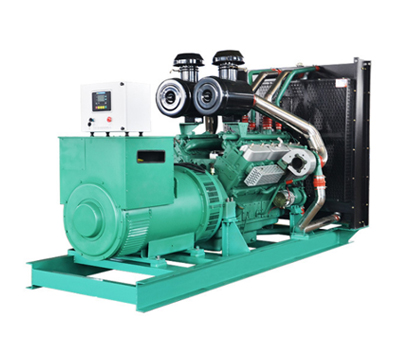

Dry energy diesel generator set 1

QN13H/15H series diesel engine for generator set is a product developed by our company on the basis of G128 series. With supercharging and intercooling, the products are mature and perfect. Since it was put on the market, market sales have increased. The power range is 308-510KW. Different configurations can be provided according to user needs. This model is a novel supporting power for generator sets.

QN8H/9H series generator set oil extraction machine is a mature product of our company. According to the working conditions and characteristics of the generator set, it is an economical oil extraction machine with large horsepower, strong power, and low emissions. It is an ideal supporting power for power stations.

The QN26H/28H/32H series generator set diesel engine is a product developed by our company on the basis of the 12V135/12V138 series diesel engine. This product has excellent power, simple matching, convenient maintenance, market retention and our company's good after-sales network. Let users avoid the worries of spare parts supply and maintenance services. The power range is 510---1120KW. It is the ideal power for generator sets.

2. Technical parameters:

Unit Type

Output power (GF/KVA)

Rated current (A)

Diesel engine model

Generator model

Dimensions
L×W×H(mm)

Unit weight (kg)

120GF

120/150

216

QN8H163

TFW2-120-4A

2500×900×1600

1440

160GF

160/200

288

QN8H217

TFW2-160-4A

2500×900×1600

1700

180GF

180/225

324

QN9H245

TFW2-180-4A

2720×1370×2130

2350

200GF

200/250

360

QN9H272

TFW2-200-4A

2720×1370×2130

2500

250GF

250/312.5

450

QN9H340-1

TFW2-250-4A

3200×1690×1950

2850

280GF

280/350

504

QN13H380

TFW2-280-4A

3200×1690×1950

2850

320GF

320/400

576

QN13H435

TFW2-320-4A

3200×1690×1950

3000

350GF

350/437.5

630

QN13H516

TFW2-350-4A

3500×1300×2100

4000

400GF

400/500

720

QN26H571

TFW2-400-4A

3200×1690×1950

4100

450GF

450/562.5

810

QN26H612

TFW2-450-4A

3400×1690×2130

4200

500GF

500/625

900

QN26H680

TFW2-500-4A

3400×1690×2130

4300

600GF

600/750

1080

QN28H816

TFW2-600-4A

3600×1750×2200

4600

650GF

650/812.5

1170

QN28H884

TFW2-650-4A

3800×1800×2200

4700

700GF

700/875

1260

QN28H960

TFW2-700-4A

4700×2100×2250

7700

720GF

720/900

1296

QN28H1100

TFW2-720-4A

4700×2100×2250

7700

750GF

750/937.5

1350

QN28H1150

TFW2-750-4A

4800×2200×2250

7900

800GF

800/1000

1440

QN32H1210

TFW2-800-4A

4800×2200×2250

8100

850GF

850/1062.5

1530

QN32H1280

TFW2-850-4A

4800×2200×2250

8200

1000GF

1000/1250

1800

QN32H1340

TFW2-1000-4A

4900×2200×2250

8500

The power range of the diesel generator set supplied by our company is 30kw-3000kw, which can meet the specifications of ordinary, automatic, four protection, automatic switching and three remote monitoring, low noise and mobile...
